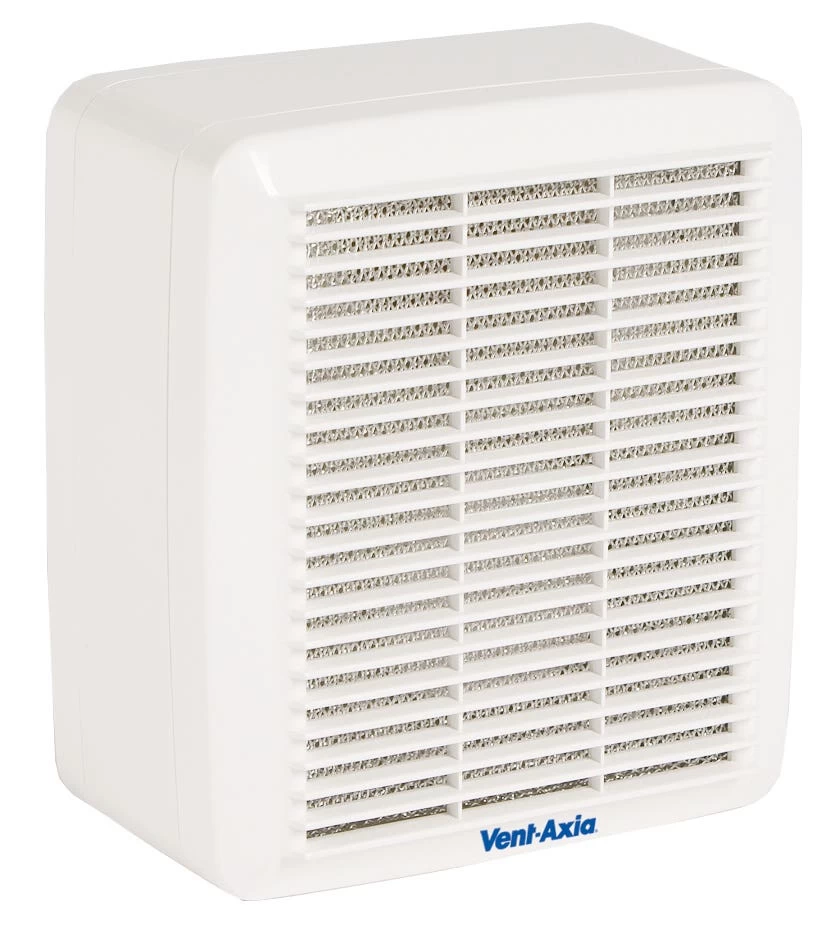

Vent Axia Centrif Duo T Centrifugal Fan With Timer (256220D)

Vent-Axia are the leading manufacturers and suppliers of heating, ventilation and air conditioning systems, both in the UK and around the world. For over 75 years, they have led the industry in air ventilation products, systems and services. Whatever your requirement, budget or setting, Vent-Axia can provide the solution you need. From extraction fans for the home to large commercial ventilation solutions, their wide HVAC range features a product for every air handling purpose.

The Centrif Duo range is a series of 100mm
centrifugal extract fans for the domestic environment.
The range is designed to provide extraction levels
that comply with Building Regulation requirements,
with special humidity sensing variants for local
authority use. The motor features greased-for-life ball bearings
which allow the fan to be installed at any angle.
Insulation is Class E. Double insulated appliance.
Supply voltage 220-240V/1/50Hz. The Centrif Duo has a 100mm circular spigot. The
Flush mounting kit enables the spigot to be converted
to a side outlet. The spigot also encloses a built-in,
spring operated back draught shutter. The Centrif
Duo Range can be wall mounted using a telescopic
wall fitting kit available as an accessory (requires
a 115mm diameter hole). For ceiling applications
the range is ducted either through a soffit outlet or
roof cowl assembly. There is convenient access for
wiring which can be surface or recessed.

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• 100mm circular spigot for speedy installation
• Suitable for both kitchen and utility rooms
• Removable grille assembly for easy cleaning
• Speed set at installation
• Surface or recessed installation options
• Meets current Building Regulations Approved Document F
• Colour / Finish White

Additional Information

• Dimensions (H x W x D)
  261 x 231 x 137

Manuals & Specifications

• Vent-Axia Centrif Duo Brochure

• Vent-Axia Centrif Duo Installation Instructions

Single speed with adjustable timer between 2-30 minutes. Choice of two boost speeds, set at installation. Kitchen and Utility Ventilation The Centrif Duo range is a series of 100mm centrifugal extract fans for the domestic environment. The range is designed to provide extraction levels that comply with Building Regulation (Document F) requirements, with special humidity sensing variants for local authority use. The Centrif Duo is for kitchens and utility rooms and large bathrooms. Surface mounting directly into standard 100mm diameter ducting, through the wall or ceiling installation. Fast installation
