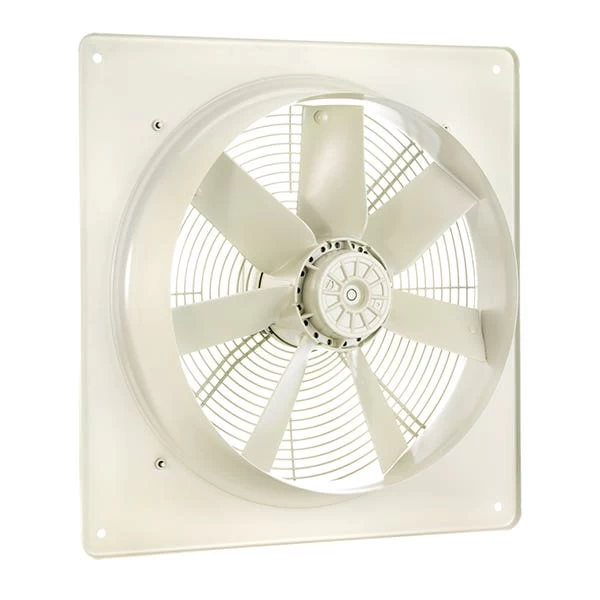

Vent Axia EuroSeries Plate Fan 315 Dia 1 Phase 2 Pole (ESP31512)

Vent-Axia are the leading manufacturers and suppliers of heating, ventilation and air conditioning systems, both in the UK and around the world. For over 75 years, they have led the industry in air ventilation products, systems and services. Whatever your requirement, budget or setting, Vent-Axia can provide the solution you need. From extraction fans for the home to large commercial ventilation solutions, their wide HVAC range features a product for every air handling purpose.

The new range of EuroSeries ESP axial blade plate fans, feature a single shot die cast aluminium blade & external rotor motor design.
The EuroSeries ESP range is available in eleven sizes with the extract performances up to 13.89 m³/s, with pressure characteristics of up 300Pa. All units are designed for & fully speed controllable. All sizes shall be supplied with cast aluminium impellers, ensuring performance when working against outdoor conditions and abrasive airflow. All fans are reversible for Intake (-30% performance). External rotor motors are specially designed and styled for this range of fan. Ball bearings shall be greased for life. Rotors are dynamically balanced to ISO 1940. Sizes 315-1000mm, motors are protected to IP54, against dust and moisture complying with BS EN 60529:1992. They shall be ribbed aluminium body castings for efficient cooling. Motor insluation is Class ‘F’ (from -40°C to +70°C). Single phase 220-240V 50Hz. Capacitor start and run. Three phase 380-415V 50Hz. An IP54 terminal box shall be supplied with most models with 20mm and PGII entry. All motors shall be fitted with thermal overload Protection which should be wired into all controller circuits and into starter contactors. Models are available with either 2,4, 6 & 8 pole motors. Fan sound levels, measured in a reverberant chamber in accordance with BS848 Part 2 1985. Published dB(A) figures are free field sound pressure levels at 3m with spherical propogation at a reference level of 2 x 10-5 Pa (20 micro-Pascal). The sound power level spectra figures are dB with reference level of 10-12 Watts (1 pico-watt). To ensure minimum noise levels during speed control, an auto transformer speed control is recommended.

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• Die cast aluminium impellors
• Fully speed controllable
• Sizes 315 to 1000 dia protected to IP54
• Operating Temperatures from -40°C up to +70°C Motor
• Thermal overload for motor protection
• Tough epoxy paint finish
• 2 Year Warranty.
• Colour / Finish White

Manuals & Specifications

• Vent-Axia EuroSeries ESP Brochure

• Vent-Axia EuroSeries ESP Installation Instructions
