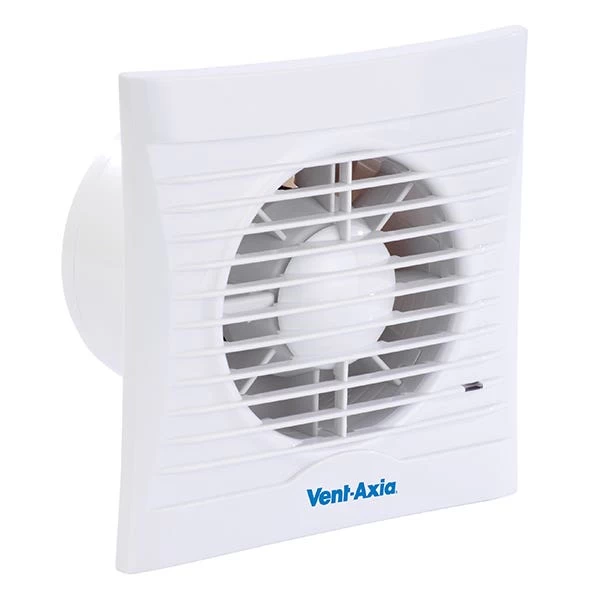

Vent Axia Lo-Carbon Silhouette 100SVT SELV Bathroom Fan Timer & Shutter (441512)

Vent-Axia are the leading manufacturers and suppliers of heating, ventilation and air conditioning systems, both in the UK and around the world. For over 75 years, they have led the industry in air ventilation products, systems and services. Whatever your requirement, budget or setting, Vent-Axia can provide the solution you need. From extraction fans for the home to large commercial ventilation solutions, their wide HVAC range features a product for every air handling purpose.

100mm bathroom/toilet fan with integral adjustable electronic overrun timer (5-30 minutes), indicator light which operates on manual override only, and back draught shutter. Slimline Bathroom Ventilation With a slim profile of only 17mm, Silhouette blends in with the wall surface to provide an unobtrusive installation. Silhouette has a FID performance up to 26l/s. Silhouette can be ceiling/panel mounted and connected to an appropriate duct run to the outside. Safety Extra Low Voltage (SELV) designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Silhouette SELV can be safely installed within the spray area. The fan is rated IPX7, control is by a mains safety isolating transformer with 12V DC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower.

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• Models Basic/Timer/Humidity – Installation
• Low Power consumption – Lower running costs, Quiet running
• Fully opening and closing shutters – Improved insulation
• 1 of 2 speeds selectable at installation
• Blue power indicaton light – Modern aesthetics
• 5 Year Motor Guarantee
• IPX7 rated (SELV)
• Colour / Finish White

Additional Information

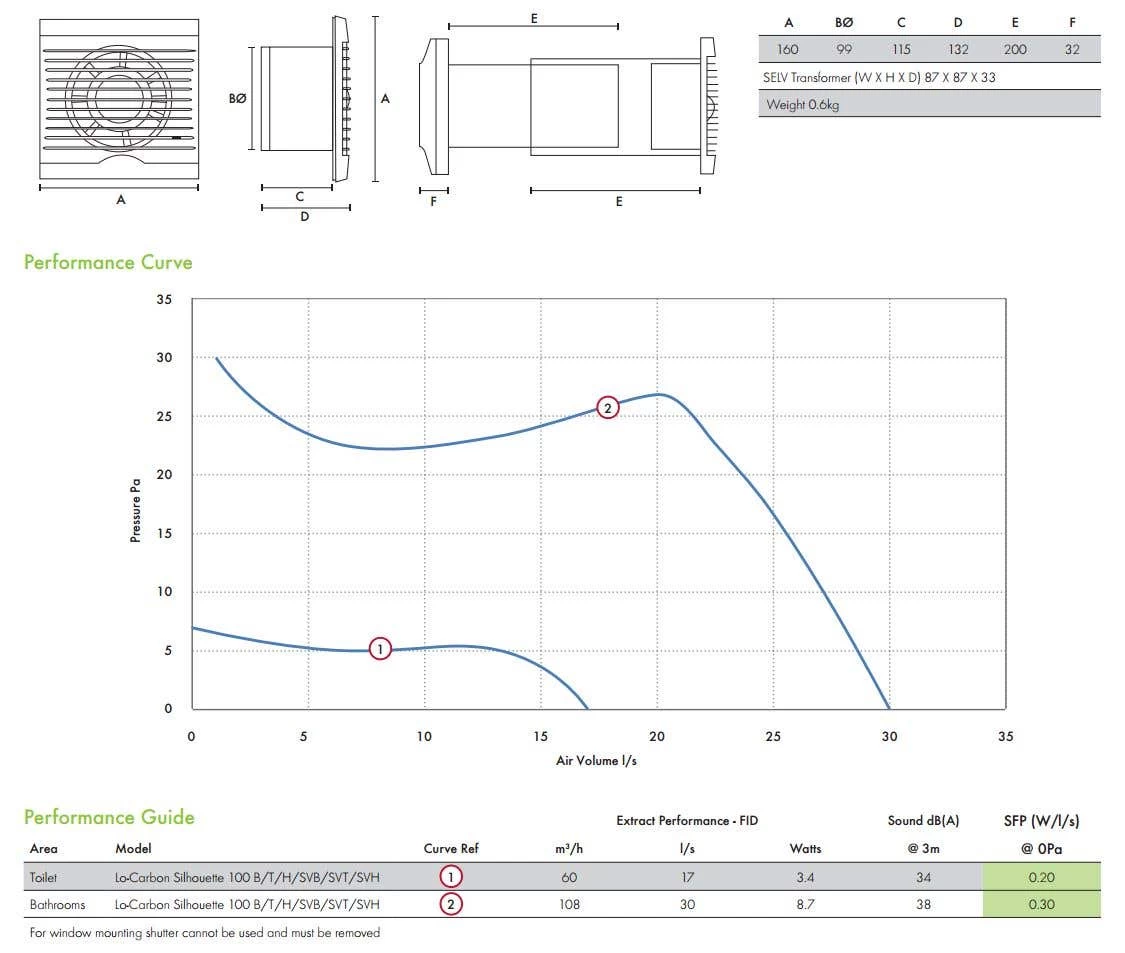

• Dimensions (H x W x D)
  160 x 160 x n/a

Manuals & Specifications

• Vent-Axia Lo-Carbon Silhouette 100 Brochure

• Vent-Axia Lo-Carbon Silhouette 100 Installation Instructions

• Bathroom Ventilation IP Ratings Explained
