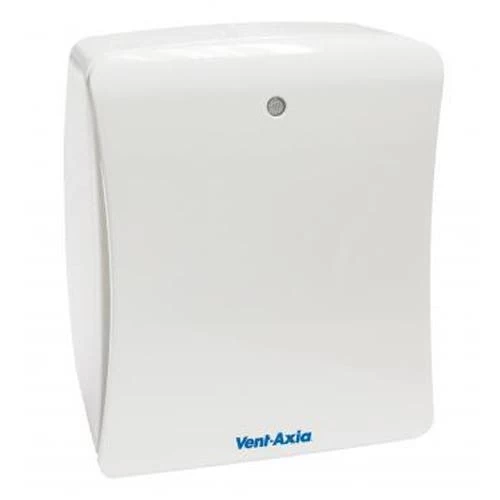

Vent Axia Solo Plus T Centrifugal Fan With Timer (427478)

Flush or surface mountable. Constant trickle option. 2 Speed. Adjustable timer overrun.Delay on timer. The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, WC’s and other small rooms.

The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, toilets and other small rooms.

Finished in white, the Solo Plus can be flush or surface mounted, with a 100mm circular spigot for rear entry or connecting to a vertical ducting system. The spigot can also be adjusted for side ways exhaust enabling recessed ceiling installations within limited ceiling voids.

The powerful centrifugal impeller allows for installations with longer duct runs using 100mm ducting, whilst still achieving 15 l/s as required by Document F of the current Building Regulations.

Continuous running products, such as the Solo Plus installed in all wet areas of a dwelling are classed as a wholehouse ventilation system and therefore, only needs to move the amount of air as laid down in table 1.1b of Document F. The Solo Plus has a choice of two boost/override motor speeds set at installation, medium (17l/s) or high (22l/s), with an optional constant trickle speed (9l/s), also selectable at installation except in the P model.

Depending on the model, the fan will switch from trickle (if selected) to boost (medium or high) via the pullcord/ light switch/humidity sensor/PIR. All models can be wall, panel or ceiling mounted and can be connected to either circular, rectangular or Vent-Axia’s flat ducting.

Enclosure of the electrical components is manufactured from flame retardant grade material.

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• Filterless as standard – innovative impeller design means no need for a filter
• IPX4 rated
• Flush or surface mountable
• Adjustable rear or side exit spigot
• Extremely low sound levels
• Meets current Building Regulations Approved Documents F & L requirements for domestic bathrooms and toilets
• Colour / Finish White

Additional Information

• Dimensions (H x W x D)
  261 x 221 x 107

Manuals & Specifications

• Vent-Axia Solo Plus Brochure

• Vent-Axia Solo Plus Installation Instructions

• Bathroom Ventilation IP Ratings Explained

Flush or surface mountable. Constant trickle option. 2 Speed. Adjustable timer overrun.Delay on timer. The Solo Plus range from Vent-Axia has been specially designed for through the wall and ducted applications, suitable for internal bathrooms, WC’s and other small rooms.
