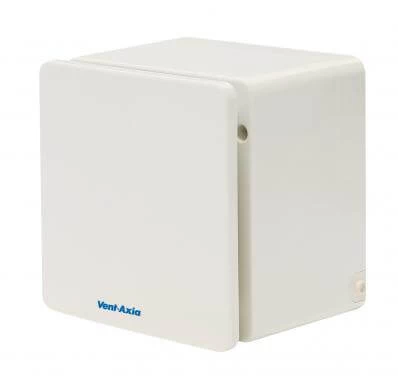

Vent Axia Solo Pro SELV Centrifugal Fan With Humidistat (409156)

High Performance Ventilation
The new Solo Pro is a new and improved version of our trusted
Solo model. With improved aesthetics, sound and installation it has been specifically designed for effective ducted ventilation of internal bathrooms, toilets and other small rooms. Finished in White, the new Solo Pro range can be used with 100mm diameter smooth bore duct in straight runs equal to 50m, yet still meets the minimum 15l/s required by the current Building Regulations Document F for ventilation of bathrooms. Solo Pro can also be used with flat ducting for shorter concealed runs.

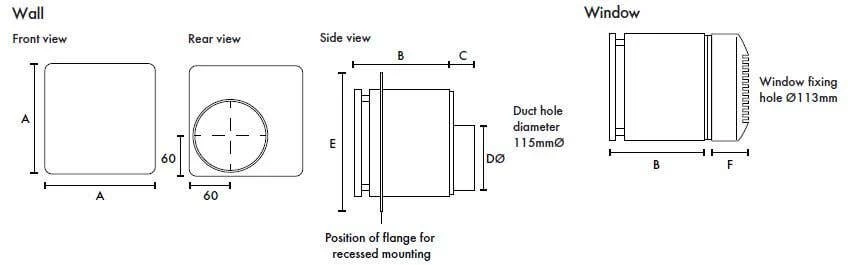

Models are available for surface or recessed mounting directly into standard 100mm diameter ducting. Suitable for panel, wall and ceiling installations and windows up to 25mm thick. For high rise or coastal applications, install through the wall with a Vent Cowl (Stock Ref 561403).

Safety Extra Low Voltage
SELV models are designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Solo SELV models can be safely installed within the spray area. The SELV models are rated IPX7, control is by a mains safety isolating transformer with 12V AC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower.

The safety isolating transformer, to BS EN 60742, is mounted in a purpose made enclosure. The enclosure can be wall mounted or sited in the loft. The enclosure will accept mini trunking.

Electrical
Rear 20mm conduit entry for recessed wiring and side entry grommet for surface wiring. Supply voltage to transformer/controller 220-240V/1/50Hz. Output to fan 12V SELV/ 1/50Hz.

View in Catalogue

Instructions

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• 100mm high performance centrifugal extract fan for internal bathrooms, toilets and other small rooms
• Extract performance 22l/s
• Single speed and overrun timer models
• Suitable for wall, ceiling, panel and window mounting
• SELV models suitable for installation over or within reach of a shower or bath
• IPX4 rated – IPX7 rated (SELV)
• Transformer complies with BS EN 60742
