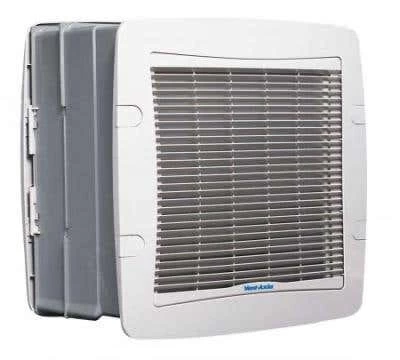

Vent Axia TX6WL T-Series Size 6 Wall Fan 220-240V (W161510B)

Vent-Axia are the leading manufacturers and suppliers of heating, ventilation and air conditioning systems, both in the UK and around the world. For over 75 years, they have led the industry in air ventilation products, systems and services. Whatever your requirement, budget or setting, Vent-Axia can provide the solution you need. From extraction fans for the home to large commercial ventilation solutions, their wide HVAC range features a product for every air handling purpose.

Behind the grille of the T-Series wall model is a range of high performance extract/intake ventilating units designed to fit through most wall thicknesses using telescopic liners supplied. For walls of exceptional thickness additional liners can be used. T-Series also features a unique speed control pack which enables high, medium or low speed to be preset to suit room size or required duty. Conduit entry is provided for concealed wiring. T-Series controllers may be used with this model to obtain a choice of speeds, reversible airflow direction and automatic sensor operation. When used with a T-Series TSC controller, the speed control pack is removed from the T-Series ventilating unit and fitted into the 3-pin socket in the back of the controller. The Vent-Axia Ecotronic controller gives even greater running economy with its minimum speed setting and ‘E’ mode. When using the Ecotronic controller the speed control pack remains in the fan. TX models are supplied complete with an integral instantaneous automatic louvre shutter which will operate on both intake and extract and at any angle of mounting.

The shutter is electronically controlled by an actuator with a damped action giving quiet operation during instant opening and closing. The interlocking edges of the shutter blades provide maximum backdraught protection. When the ventilating unit is used with a T-Series controller, the shutter can be set open with the fan motor switched Off to provide natural ventilation without the security risk of an open window.

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• Extract/intake fans in 4 sizes: 6”, 7”, 9” and 12”
• Patented electronic shutter system ensures quiet trouble free operation
• To obtain the best from your fan, use the Ecotronic controller
• Shutter open/fan off mode
• Easy fit connector Top Socket, standard on all models
• Colour / Finish White

Manuals & Specifications

• Vent-Axia T-Series Wall Fan Brochure

• Vent-Axia T-Series Wall Fan Installation Instructions

• Vent-Axia T-Series Wall Fan Wiring Diagrams
