Xpelair Xplus 2 AC Multi-Point Ventilation Unit (92430AW)

The Xpelair Xplus 2 is a high performing central extract system designed to continuously extract stale,
moist air from domestic kitchens, bathrooms and commercial wet rooms.
The unit is primarily used in domestic applications but can also be used for commercial
applications where continuous extract is required.
The multi-spigot low profile design offers the installer greater flexibility when choosing where
to site the unit and also due to the spigot configuration, allows ducting to be connected from
any direction, therefore reducing airflow restriction and noise. The unit is suitable for either
horizontal or vertical installation.
Xplus 2 has 1-125mm Ø discharge spigot to atmosphere and up to 6-125mm Ø spigots from
the dwelling, depending on the total volume required. 4 blanking plates are also supplied.
Xpelair accessories such as Profile 60 rectangular flat duct together with 125mm Ø rigid
and flexible insulated/uninsulated ducting can be used in conjunction with the Xplus 2 unit to
provide a complete ventilation system.

Xpelair Xplus 2, 4 speed selection (controller required) | Trickle and boost options | Multi-spigoted | Can be surface mounted horizontally, vertically or inverted.

Order today at our great prices, and enjoy our superb customer service!

If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.

KEY FEATURES

• Up to six 125mm extract spigot connections
• External rotor motor
• 4 speed selection (controller required) with trickle and boost options
• Low profile design for horizontal or vertical installation in ceilings and voids
• Suitable for use up to 50 degrees Celsius
• 190mm low profile design
• Controller required
• Colour / Finish Mixed

Additional Information

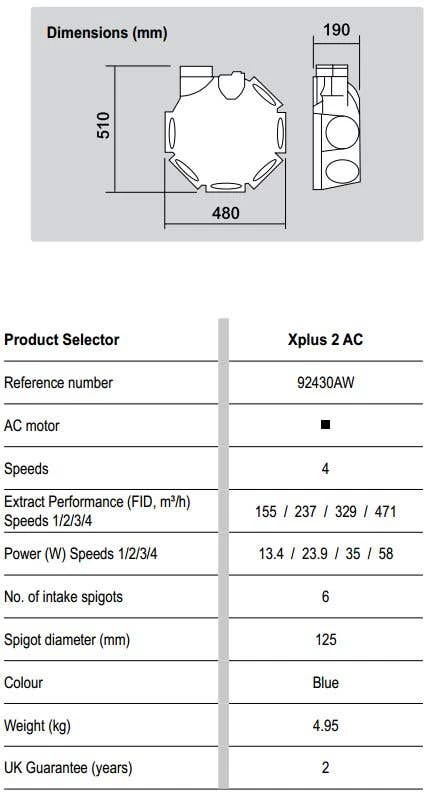

• Dimensions (H x W x D)
  510 x 480 x 190

Manuals & Specifications

• Complete Xpelair Catalogue
